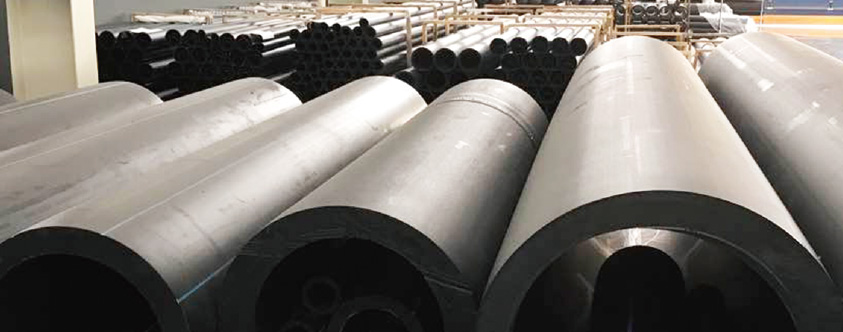

Green safety PE solid-wall pipe

The raw material is 100% HDPE batch mixed batch，product quality and stability，with good safety performance. We manufacture the metric system and Imperial standard product according to chinese standard and ASTM.

performance advantage

Good hygienic properties No added metal salt stabilising agent、 no toxin, no dirt, no bacterium， solves the problem that secondary contamination of urban drinking water well

Long Using Life under the rated temperature and pressure, PE pipes may be used for over 50 years.

Reliable connectivity PE pipe hot melt or fused interface strength is higher than the pipe body, joints will not load due to soil movement or the role of living off.

Good Work ability pipe is light, welding technology is simple, construction is convenient, and it is low for engineering comprehensivecost.

Excellent corrosion resistance can withstand a variety of chemical erosion except a few strong oxidant

Excellent impact resistance Good Toughness， high intensity and impact resistance，not pipeline rupture resulted from direct heavy Pressure in the PE pipe above.

Strong wearability. Quadrupled common steel pipe‘s wearability with the same condition.

Production technology

nachuan and the introduction of domestic outside the most well-known equipment manufacturers of pipe extrusion machine fitting injection molding machine welding equipment and other peripheral equipment, as the most important pipe extrusion equipment, pipeline system equipped with the most advanced production control system, to achieve 100% thickness online wall defect scan, ensure the quality of each pipe

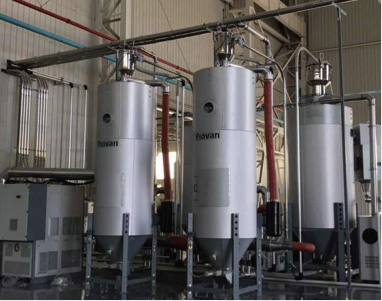

Manufacturing equipment

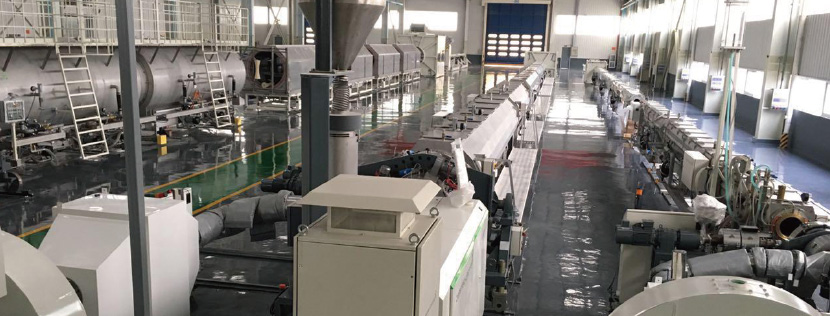

Pipe With

the latest production line from battenfeld-cincinnati.

Fitting

Adopt international advanced special injection molding machine from Haitian group.

CONNECTION TYPE

nachuan and the introduction of foreign advanced full set of automatic welding technology and equipment, with the industry the most secure way of connecting electrical fusion for nuclear power using polyethylene pipe connections, through the international most advanced ultrasonic NDT inspection pipe connected to the pipe quality, ensure the safety of the pipes and pipe joint is reliable, so as to guarantee the quality of the whole pipeline system safety joint research and development laboratories in the process of construction to provide a full range of technical services, provide regular running life period in service inspection service, commitment to lifelong after-sales service

hot-melting butt-joint

Utilizing professional welding machines（for DN 75mm above pipe）

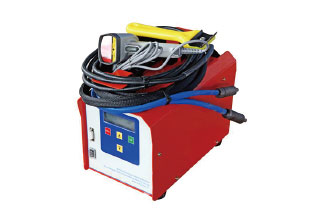

electric melting

Connections for pipes& pipe and fitting （for DN 160mm below pipe）

Plastic Steel Connections

may adopt the connecting method as flange, screw threaded etc

Bell-and-spigot connection

For DN90mm below pipe

Select appropriate welding machines according to different models pipe and construction condition

Product specification

British size

IPS尺寸 (in.)		1/2	3/4	1			2	3	4	6	8	10	12	14
IPS尺寸 (in.)		16	18	20	22	24	26	28	30	32	34	36	42	48

metric size

公稱直徑 (mm)		1/2	3/4	1			2	3	4	6	8	10	12	14	12	14
公稱直徑 (mm)		16	18	20	22	24	26	28	30	32	34	36	42	48	12	14

Supporting pipe fittings

The type of HDPE pipe fitting for nuclear power provided by nachan is mainly a 90-degree Angle variable diameter flange tee, and the specific dimension is shown in the following table.
